SPF screen printing machine equipment

SPF screen printing machine equipment

  • Categories:Textile Screen Printer
  • MOQ:1
  • Brand:Changs
  • FOB Port:Shanghai port, Ningbo port
  • Terms of Payment:Western Union,T/T Paypal
  • Delivery Time:15 Wording Days

Basic introduction:

Super fast label printing and other industries used in the garment industry.The speed of this screen printing machine is up to 2000 pieces per hour,which can greatly increase the production.

Suitable materials:

Fabrics,garments, t-shirts,gloves, socks, umbrellas, labellogos,etc.

Detailed characteristics:

1.PLC control, man-machine interface, clear function and simple operation.
2.Flat screen printing, in fraredray drying, especially suitable for different types of ink and small area screen printing frame.Like the collar of a T-shirt.
3.A variety of stations are selected, which are located by the servo motor,running smoothly and smoothly,with high precision to spend.
4.Scraper and ink return knives can be adjusted both in Angle and height to ensure balanced printing pressure. When color printing, the second color screen printing template can be accurately adjusted before and after.

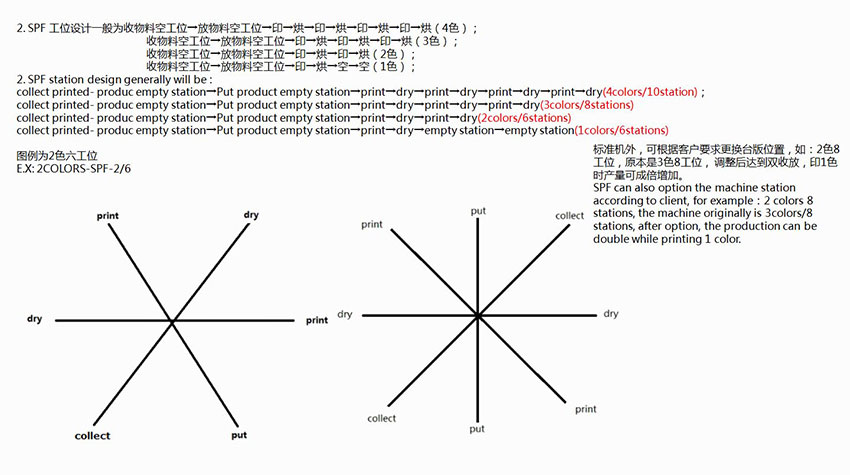

5.Adopt multi-station rotating workbench, one of which places the work piece, (1,2, 3) four stations printing,(1, 2, 3) four stations drying, one station taking the work piece, all of which can run at high speed at the same time.

Description:

The printing speed is related to loading and unloading,printing stroke and product
In addition, we can design and manufacture special equipment according to customer requirements

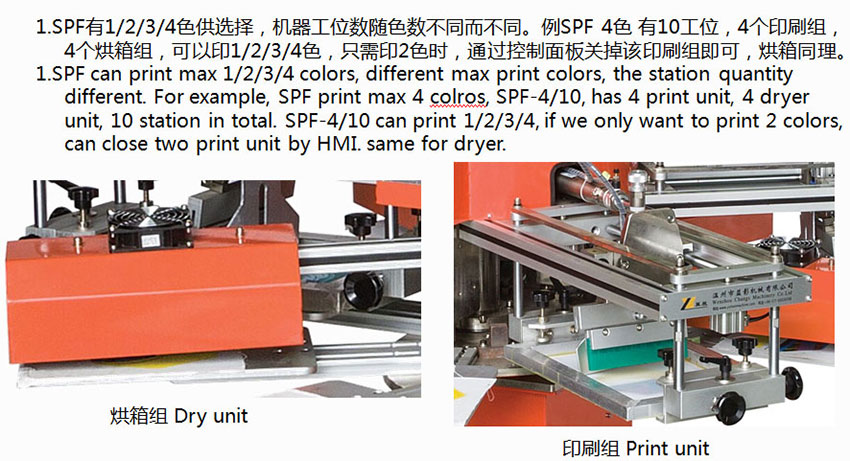

Model choose & Confirm:

Parameters:

Model

SPF-1/6

SPF-2/6

Print
Color/Sation

1+1heat press/6

2/6

Max.Printing

Area

150*150mm

150*150mm

Dryer

1

2

Pallet Size

200*320mm

200*320mm

Max.Printing Speed

1800pcs/hr

1800pcs/hr

Total Power

3.0kw

3.8kw

Rated Voltage

AC220v50/60Hz

AC220v50/60Hz

Air Consumption

10Litre/min0.6Mpa

20Litre/min0.6Mpa

Dimension

∅1200*1450mm

∅1500*1500mm

Weight

120kg

230kg

Model

SPF-3/8

SPF-4/10

Print Color/Sation

3/8

4/10

Max.Printing Area

150*150mm

150*150mm

Dryer

3

4

Pallet Size

200*320mm

200*320mm

Max.Printing Speed

1800pcs/hr

1600pcs/hr

Total Power

5.25kw

6.75kw

Rated Voltage

AC220v50/60Hz

AC220v50/60Hz

Air Consumption

25Litre/min0.6Mpa

42Litre/min0.6Mpa

Dimension

∅1500*1550mm

∅1700*1500mm

Weight

260kg

300kg





After sales service:

1. SPF is a small machine. Generally,factory will directly debugged before delivery. After being shipped to the customer's factory, the customer can use it directly without technicians to come to.
2.The operation learning, factory will provided with instruction manual while delivery, which with detailed use steps,or can consult the after-sales staff to solve doubts
3. The machine has no wearing parts, but the lamp and cylinder will gradually wear or aging during use, which is normal.Customers can contact the after-sales staff to purchase.
4. Other questions of the machine can contacted us by mail, whatsapp, wechat, etc.
5. If the machine is due to the production quality of the factory within one year, the seller shall be responsible for repairing or providing replacement parts; if the machine is damaged due to human operation of buyer, the buyer shall be responsible for purchasing the damaged parts; the factory provide for a lifelong after-sales service for machine.
