YH Series Automatic Textile Screen Printing Machine

YH Series Automatic Textile Screen Printing Machine

  • Categories:Textile Screen Printer
  • MOQ:1
  • Brand:Changs
  • FOB Port:Shanghai port, Ningbo port
  • Terms of Payment:Western Union,T/T Paypal
  • Delivery Time:15 Wording Days

Basic introduction:

YH series printing machine is the newest and most advanced new generation automatic printing equipment in China, which will bring you high output and fast investment return. Its main features include:computer micro-processing system,accurate printing color setting accuracy,electric printing head and pneumatic turntable lifting system, simple and fast net frame loading and unloading, independent scraping and printing ink recovery speed can be adjusted freely, the machine frame can install flocking printing head an dvivid touchscreen operation interface.The YH series is available in 4,6,8,10,12 and 14 colors, with a maximum printing area of 500 x 700 mm. All models can be printed on t-shirts, sleeves, sheets and textile bags.

Detailed characteristics:

1.Color touch screen operation interface
2.The servo drive system can provide high speed running speed while ensuring stable, durable and long service life of printing
3.Quick pneumatic plat for mreplacement function
4.The turntable can rotate clockwise or counterclockwise
5.The net distance of all stations(the distance between the screen plate and the substrate surface) can be accurately adjusted at the same time

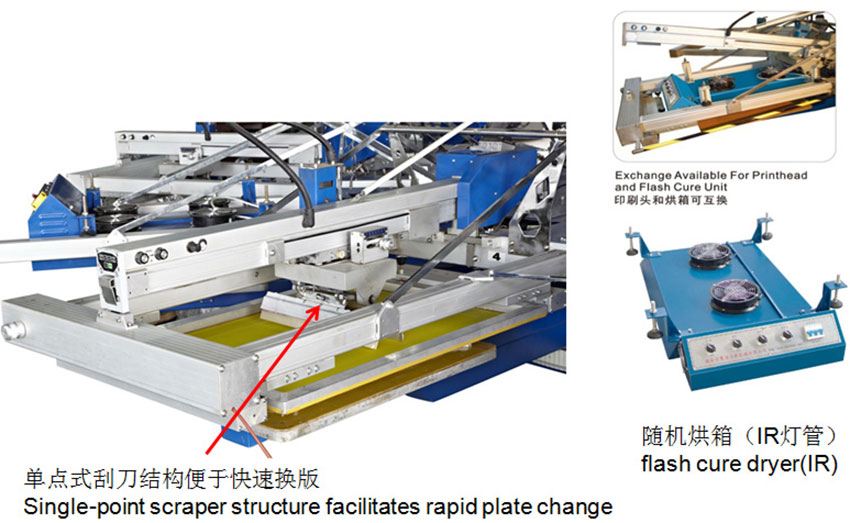

6.The frame should be able to assemble oven, printing head and flocking printing head as required
7.Manual tap jumping switch can avoid empty platform printing
8.Double shift function improves printing quality
9.The function of thick plate printing and automatic plate-changing is optional

Details show:

Parameters:

Model

YH-104/8

YH-156/10

YH-158/12

Print Color/Station

4/8

4-6/10

4-10/12

Maz. Image Area

500×700/mm/600×800/mm

Pallet Size

600×800/mm/700×900/mm

Frame Size

720×1050/mm/820×1150/mm

Consumption

8P 24.71L/100mm
(piston move)

8P 24.71L/100mm
(piston move)

8P 30.44L/100mm
(piston move)

Max.Output

900pcs/h

Power

2.9Kw

4.4Kw

4.4Kw

Each Dryer Power

13.5Kw

Size

∮4800×1650/mm

∮5500×1850/mm

∮5500×1850/mm

 Weight

2300Kg

3000Kg

3300Kg

Model

YH-1510/14

YH-2012/18

YH-2016/18

Print Color/Station

4-12/14

4-12/16

4-16/18

Maz. Image Area

500×700/mm
/600×800/mm

400×600/mm

Pallet Size

600×800/mm
/700×900/mm

500×700/mm

Frame Size

720×1050/mm
/820×1150/mm

620×950/mm

Max.Air Consumption

8P 31.51L/100mm
(piston move)

8P 30.44L/100mm (piston move)

8P 34.91L/100mm (piston move)

Max.Output

900pcs/h

Power

4.4Kw

5.5Kw

5.5Kw

Each Dryer Power

13.5Kw

Size

∮6000×1850/mm

∮6400×1850/mm

∮7000×2500/mm

Weight

3600Kg

4300Kg

5100Kg

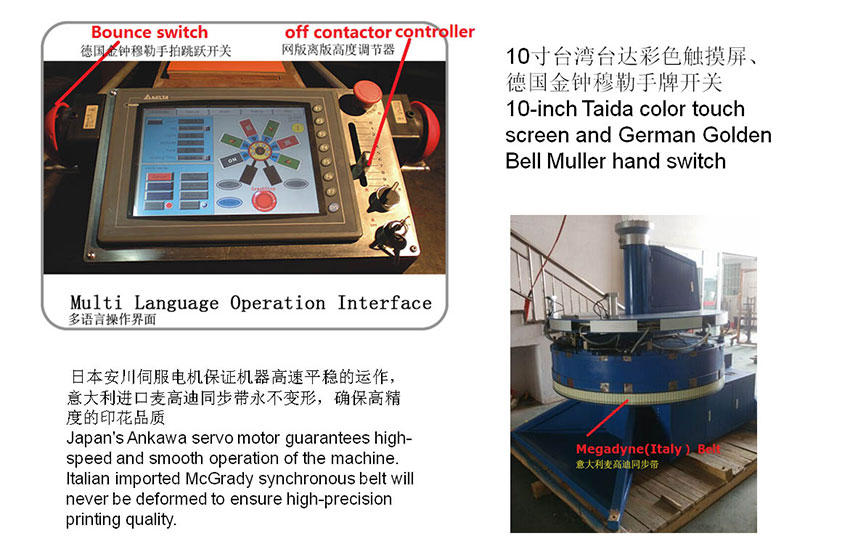

Electrical equipment configuration:

Name

YH (Brand)

Touch Screen

DELTA colorful 10 inch

Power Switch

MEAN WELL

Servo Motor

YASKAWA

Transducer

DELTA 0.4KW/220V

Smatch Switch

MOELLER A22-FAK

AC Contactor

CHNT

Middle Relay

OMRON 24VDC

Proxity Switch

OMRON

Emergency Switch

SCHNEIDER BE102C

Switch With Lock

SCHNEIDER BE101C

Spin Switch

SCHNEIDER BE101C

Air Manometer

SMC

Special Cylinder

UNIQUC Bidirectional cylinder

Muffler

EASUN

Two-way

PNEUMAN

Two-way Valve

Mindman

Belt

Megadyne(Italy)

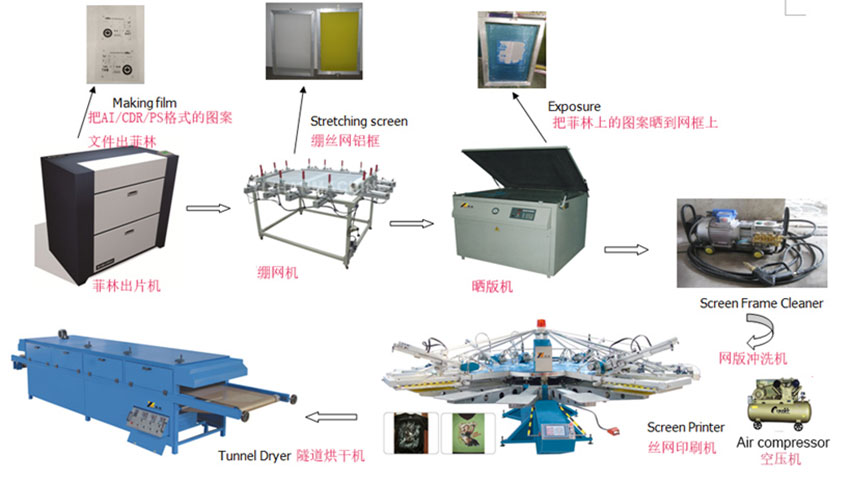

Printing process:

Other related ancillary equipment is also required.

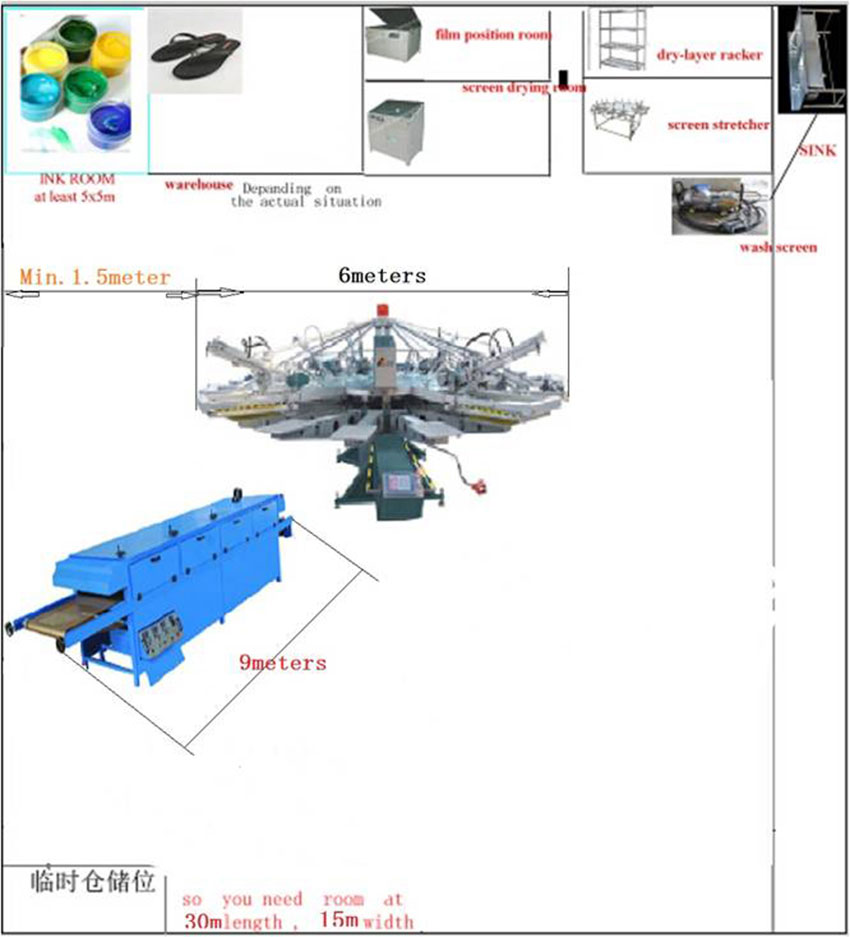

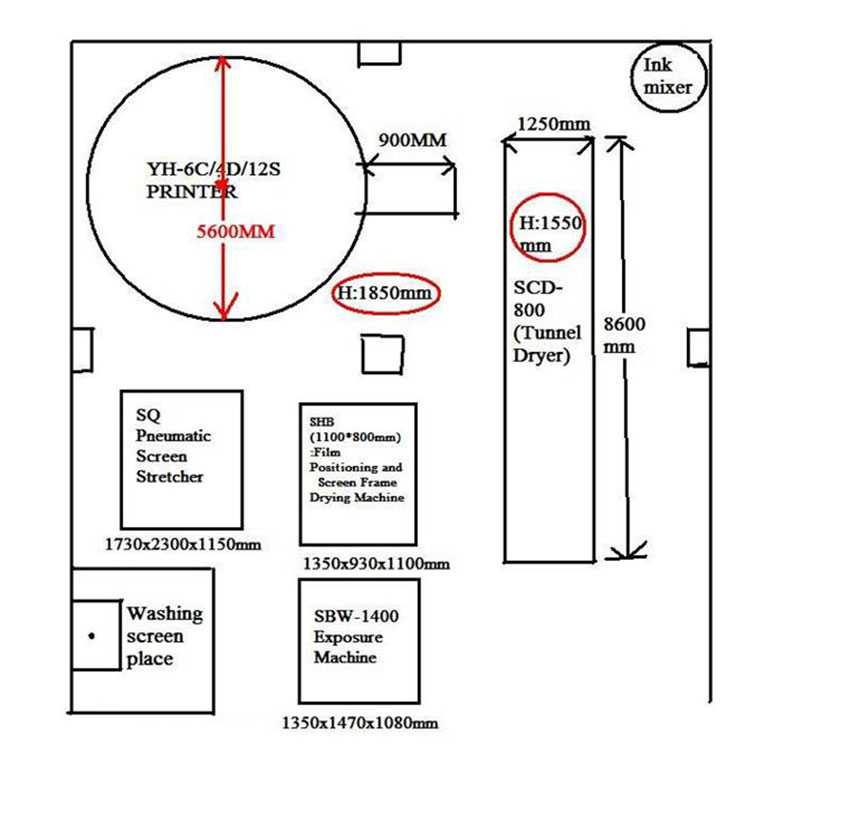

Workshop layout:

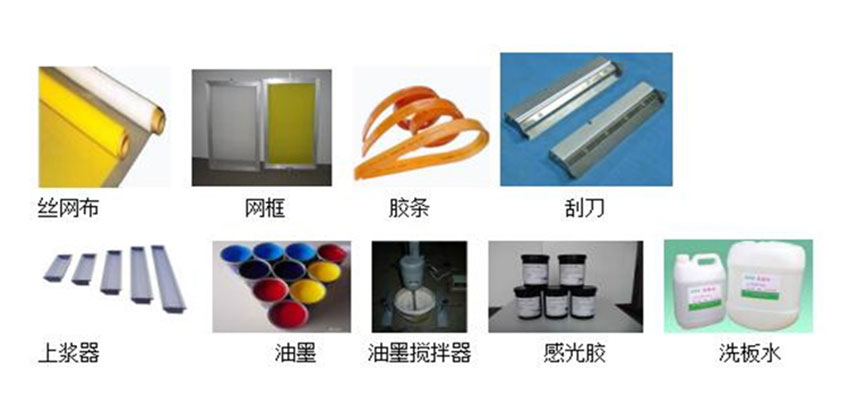

Relevant consumables and equipment:

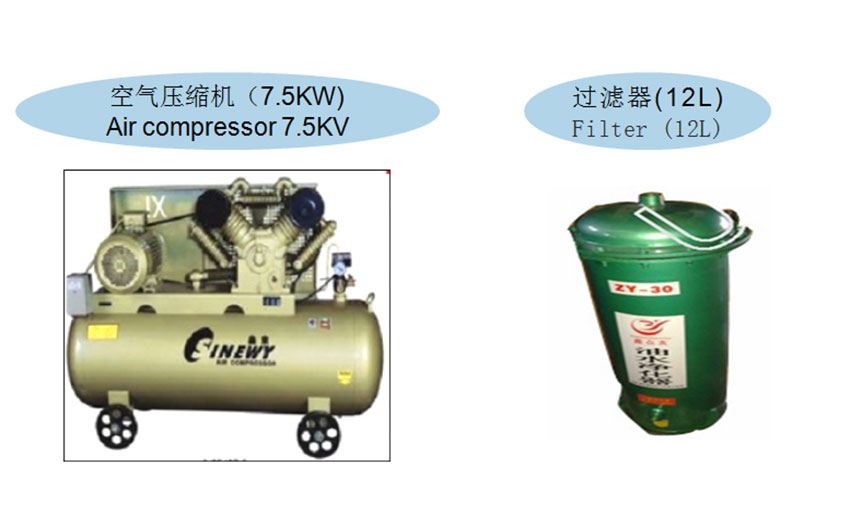

This machine needs to cooperate with air compressor and air filter,as well as other related auxiliary equipment.
