SPO Automatic Oval T-shirt Screen Printing Machine

SPO Automatic Oval T-shirt Screen Printing Machine

  • Categories:Textile Screen Printer
  • MOQ:1
  • Brand:Changs
  • FOB Port:Shanghai port, Ningbo port
  • Terms of Payment:Western Union,T/T Paypal
  • Delivery Time:15 Wording Days

Basic introduction:

Oval type automatic Screen printing machine is based on rotary screen printing machines,its performance and printing process is very well.The machine adopts modular design, high-strength aluminum alloy structure,the main rotation system adopt high-precision servo drive to assure the fast and stable operation,with the features of accurate printing, reliable performance, easy operation.Suitable for water-based ink, plastisol ink,Solvent ink and other printing processes, standardly configurated with flocking function.It’s best for pieces and various garment printing, and also flocking processing.

Control system:

1.Man-Machine interface and PLC system ,self-diagnosis.
2.Language can be exchanged between Chinese and English by Touch screen , and the help simplifies the process of operation and training.
3.Real-time display of production speed to more clearly control the operating costs.
4.four operation modes: match mode, preheat platen, automatic cycle, single cycle.

Printing platen:

1.Adopt the high strength and high-temperature resisting aerospace aluminum plate
2.Installing and replace is very rapid.

Printing station:

1.Each station can be controlled individually and be operated work or stop easily,also can control the entire equipment ON/OFF.
2.The speed and pressure of squeegee is independently adjustable.
3.Floodbar and squeegee can be fixed and took off without anytools.
4.The stop position of print head can be set freely;
5.AC drive system, stepless speed regulation.
6.Screw adjust position, accuracy± 0.05 mm
7.Printing times and route can beset free.

Rotating System:

1.Servomotor drive, running precise, high-speed, stable.
2.Multiple speed can be customized according to user demand.
3.Forward and reverse.

Module Expansion:

1.Customers buy the printing machine with the suitable numbers of stations according to demand.
2.For further needs,you can quickly and easily enlarge the machine in every two-station units.

Design & Construction:

1.High-strength, high-precision alloy aluminum structure,simple,lightweight,stable and secure;Enclosed stainless steel countertops ensures the safe operation and easy clean.
2.Modular design makes the site installation quick and future expansion easy.

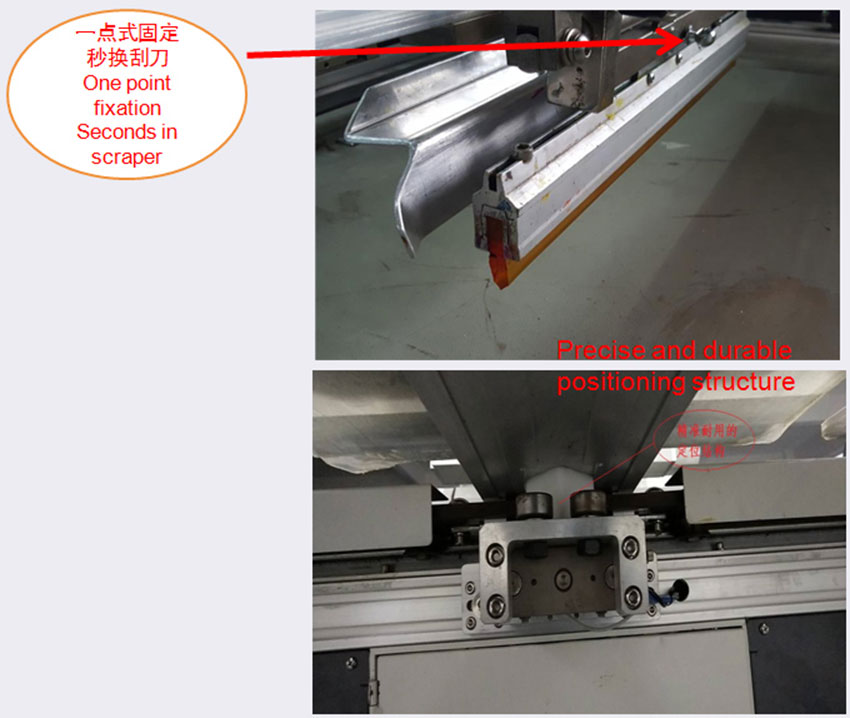

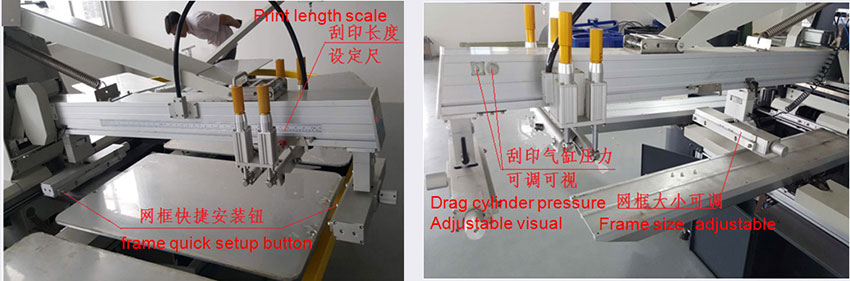

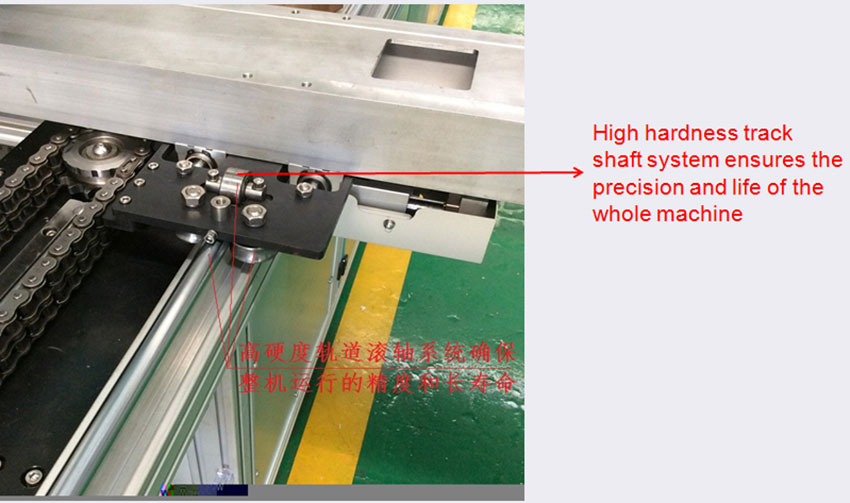

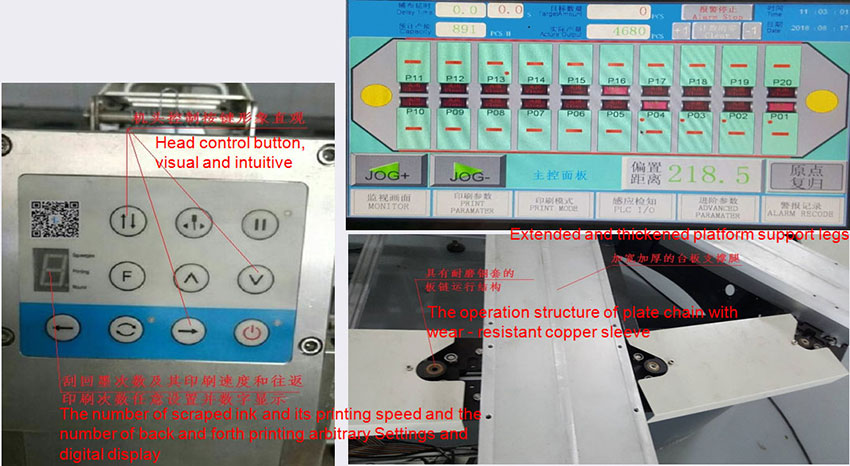

Details show:

Parameters:

model

Unit

6

8

10

12

printing number

color

6

8

10

12

plate number

block

22

28

34

40

printing size

Cm

50*70

max.frame

Cm

62*81

machine length

Cm

900

1064

1270

1476

machine width

Cm

295

machine height

Cm

160

machine weight

kg

3000

3500

4000

4500

air consumption

m3/minute

0.15

0.2

0.25

0.3

air pressure specification



0.6Mpa/0.8Mpa Must be dried and filtered.

print head driver

w

400w

total power consumption

kw

3.4

4.2

5

5.8

power supply parameters



380v,50hz

production capacity

pieces/hour

800
